Solder Paste
Jet Dispensing Paste

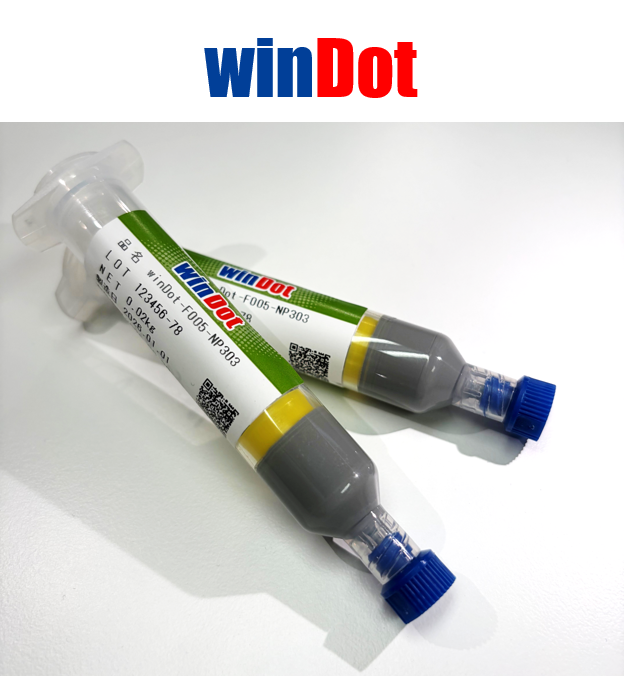

winDot-F005-NP303
For Jet Dispensing
Realized both fine coating and meltability at the same time!

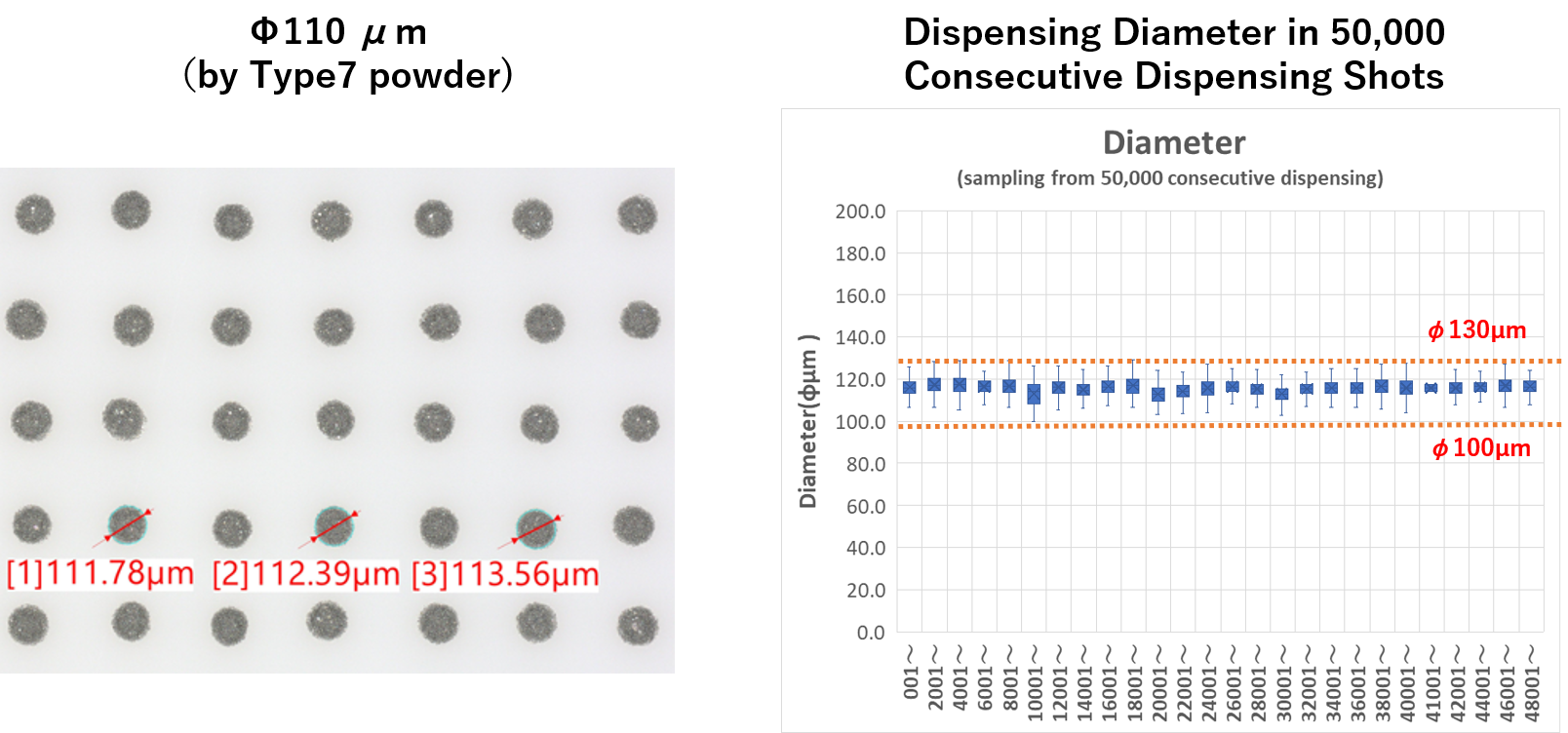

Achieved the smallest dispensed diameter in the world and no nozzle clogging!
Compatible with High-speed and Fine Jet Dispensing

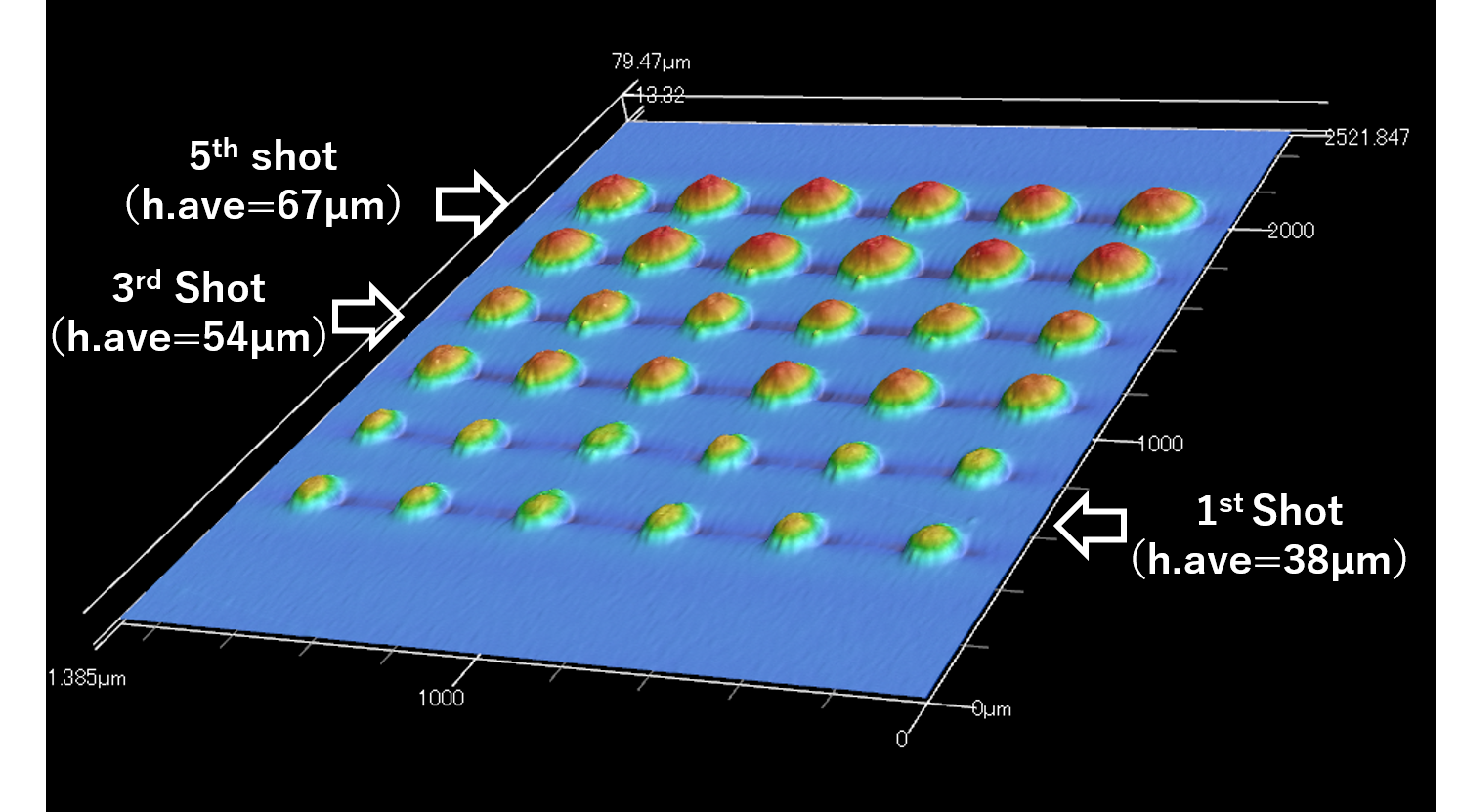

BGA Application Evaluation (Ceramic Plate)
|
∅200μm
|
∅250μm
|
∅300μm
|
 |
 |
 |
Best Solution for Solder Application to Non-printable Parts such as 3D Structures
Solder Supply to dented places such as various modules and LED modules using cavity structure printed circuit boards.
 |
 |
 |
Excellent Meltability
Melted with even Small Amount of Application

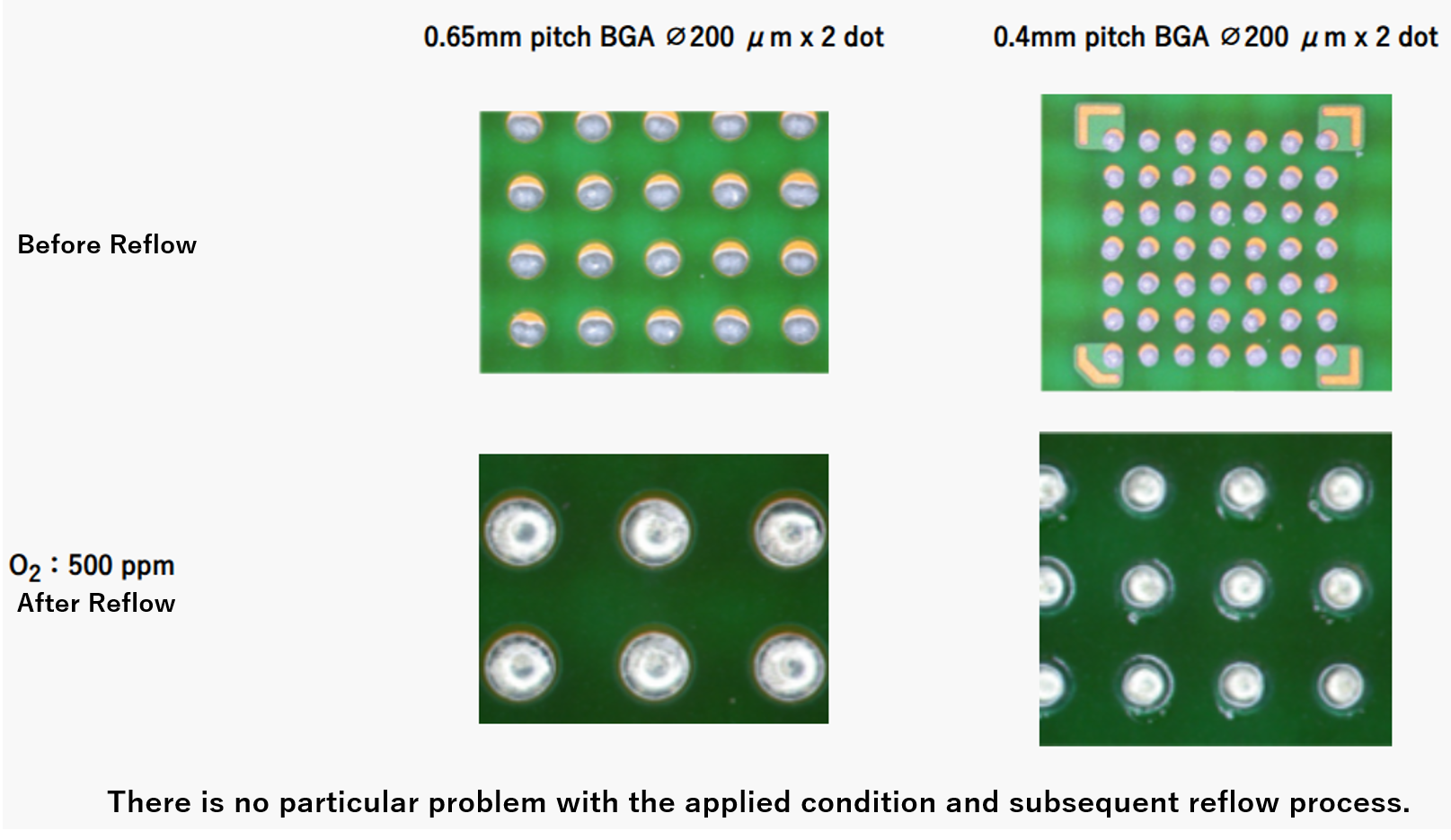

BGA Dot Coating Evaluation (on Actual Substrate)
|
0.65mm Pitch BGA ∅200μm x 2 dot
|
0.4mm Pitch BGA ∅200μm
|
|
|
Before Reflow
|
|
|
|
O2：500 ppm After Reflow |
 |
 |
There is no particular problem with the applied condition and subsequent reflow process.
|
Characteristics winDot-F005-NP303
|
||||
|
Alloy Composition
|
Sn-3.0Ag-0.5Cu Sn-58Bi Sn-10Sb
|
 |
||
|
Powder Type
|
Type5, 6, 7
|
♦ Jet Dispensing Paste | ||
|
Halide Content |
<0.03wt% |
 |
||
