Solder Paste
NEW
For Printing and Area Laser
COSMO series
NP303-COSMO-LA501-T4
Solder Paste for Area Laser Soldering
Excellent Solderability under Rapid Heating
Reliable Joint Quality Ensured with Short-time Heating
Capable of Room-temperature Transportation and Storage

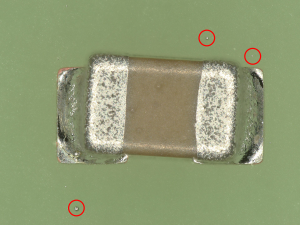

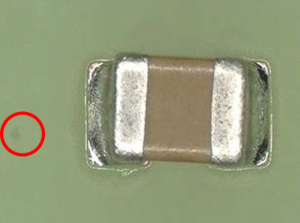

Reduced Flux And Solder Ball Spattering Under Rapid Heating
|

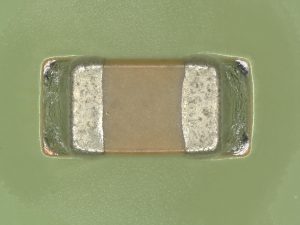

Flux Spattering Component Misalignment |
 |
NP303-COSMO-LA501-T4 |
|

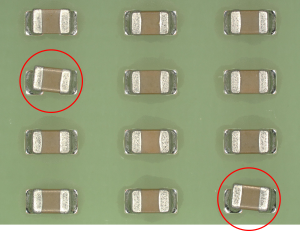

Solder Ball Spattering Component Misalignment |
 |

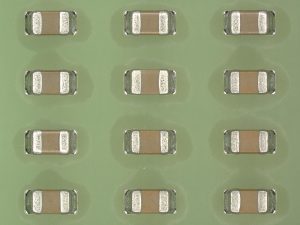

Maintains Self-alignment Capability Even With Short-time Heating
 |
 |
|
Conventional Product |
NP303-COSMO-LA501-T4 |
Good Solder Joint Formation With Short-time Heating
Confirmation of intermetallic diffusion layer formation between substrate and component electrodes after soldering
|
Cross-section of QFN Solder Joint |

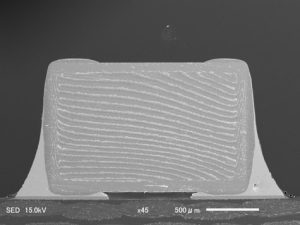

Cross-section of MLCC Solder Joint |
||
 |
 |
 |
 |
|
Terminal Electrode Solder Joint |

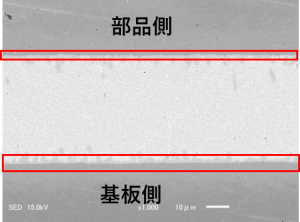

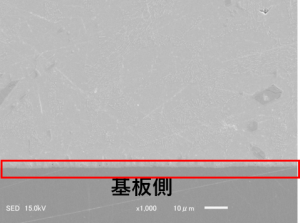

Enlarged View of Joint Interface |

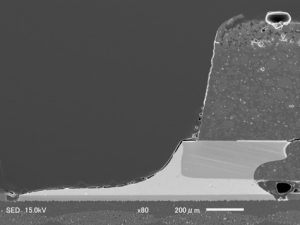

Overall Solder Joint |
Enlarged View of Joint Interface |

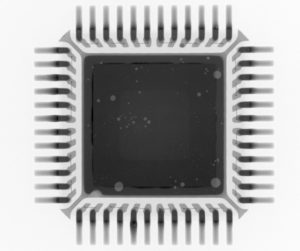

Void Reduction by Area Laser Soldering
 |
 |
|

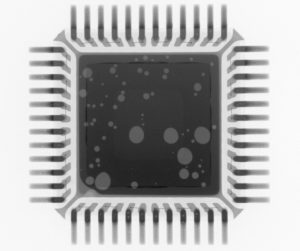

Void rate:10.13％ |
Void rate:1.19％ |
|
Heating by Reflow Oven |
Heating by Area Laser |
|
Characteristics NP303-COSMO-LA501-T4
|
||||
|
Alloy Composition
|
Sn-3.0Ag-0.5Cu
|
|
||
|
Melting Point
|
217℃~219℃
|
♦ For Aera Laser Soldering |
||
|
Powder Type
|
Type4
|
♦ Compatible at Room Temperature |
||
|
Halide Content |
0.08±0.02wt% |
|||
